Shenzhen TopAdkiosk Display Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | TOPADKIOSK/OEM |
| Certification: | CE&Rohs&FCC |
| Model Number: | TPK-FT5510 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiate |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 5-10 working days after receipt of your payment |
| Payment Terms: | T/T, , MoneyGram |
| Touch Points: | 10-points Touch | Operating System: | Win7/8/10,Android |
|---|---|---|---|
| Color: | White ,Black ,Silver | I/O Ports: | RJ45*1,USB*2, DC*1, Audio Output |
| Voltage: | AC100~240V 50 /60 HZ | Installation: | Floor-stand Type |
| Panel: | 100% A+ Grade LG Panel | Network: | Support LAN/WLAN Network |
| Size: | 32inch,42inch,43inch,49in | ||
| Highlight: | digital kiosk display,digital information kiosk |
||

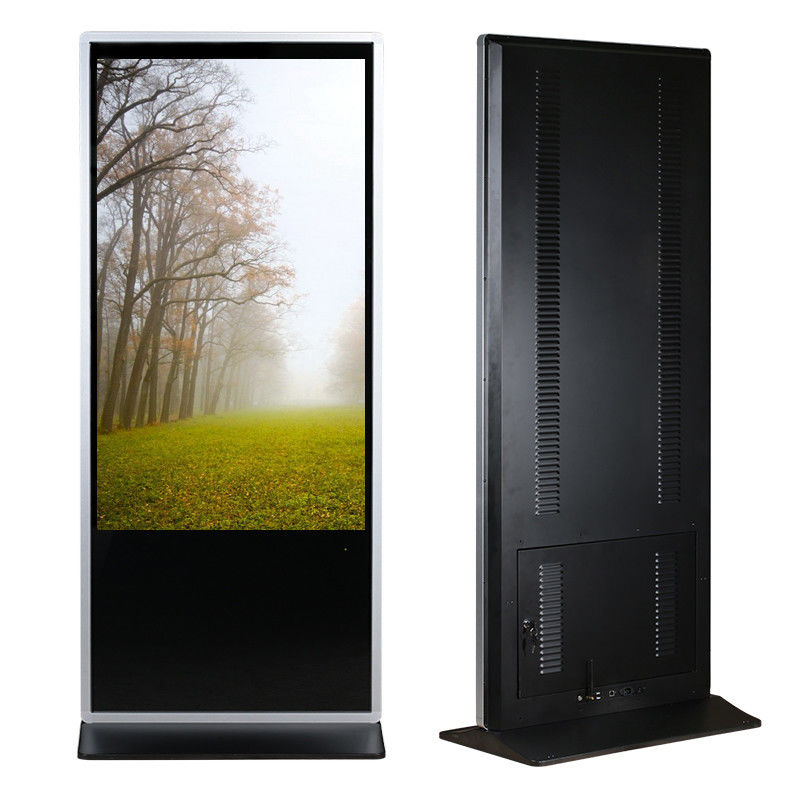

55" Full HD Advertising Digital Signage Kiosk Interactive Information Kiosk 10 Points Touch
Display mode:
Logo, video ,flash animation,images, text mix broadcasting area are available.
Support loop play.
Support rich display resolution:1366x768,1440x900,1600x900,1680x1050,1920x1080.
Support Chinese ,English and other languages.
Split-screen display:
Support switch between both horizontal & vertical display mode.
Support switch between full screen and split diplay mode.
Smooth scrolling marquee play,without pause.
Timing management:
Support turn on,turn off on time or manually operating mode.
Support set up 7 days a week or set up according to the daily management
File Saurce:
Support CF card ,SD card ,U disk & other storing media store file , update the software by
CF card ,SD card and U disk
Sizes:
Available: 22",24",26",32",36",42",46",55",65",70",84”
| Components | Details | |
| Model No. | TPK-FT5510 | |
|
PC/Android optional (can be customized) |
Industrial Motherboard | J1900/I3/I5/I7 or Android board optional |
| RAM | 4G/8G or 2G optional | |
| HDD | 500G/1T/2T or 8G flash optional | |
| Interface | HDMI/VGA/LVDS,USB,COM,Gigabite | |
| Monitor | Screen size | 32inch/43inch/50inch/55inch/65inch |
| Brightness | 500cd/m2 | |
| Contrast | 1400:1 | |
| Response Time | 8ms | |
| Dot pitch | 0.4845 x 0.4845 | |
| Viewing Angle | 178 ° horizontal / 178 ° Vertical | |
| Resolution | 1920 x 1080DPI | |
|
IR/capacitive Touch screen (with/without optional) |
32inch/43inch/50inch/55inch/65inch | |
| Multi-touch infrared touch screen with six points | ||
| High Transparence, high precision and durability | ||
| Resolution:4096×4096 | ||
| lens transmission:90% ~92%, | ||
| rientation precision< 2mm(0.080 inch);pure tempered glass | ||
| Single-point touch Life expectancy more 60,000,000 times | ||
| Antirust,anti-acid,anti-dust | ||
| Kiosk cabinet | Durable 1.5mm thick cold rolled steel cabinet with aluminum frame | |
| Back Panel has RJ-45 port, Reset button, Power Switch on/off,USB ports | ||
| Logo can be customized | ||
| Speakers,cooling fans,power cables | ||
| Color optional | all black,all white or black+silver frame color | |
| Speaker | Two louderspeakers with amplifier | |
| WIFI/3G/4G | Optional | |
| Operation system | Windows XP/Windows 7/Windows 8/Windows 10/android 4.4.4/android 5.1 | |
| Power supply | AC 110-240V 50/60Hz | |
| Packing | Bubble Foam, EPE protective packing,Carton, Wooden Case | |
| Warranty | One year warranty with lifetime | |
Built-in Wifi Module
enjoy surf the Internet,support 3G
Android
It supports mass android-base app download,also support own developed AKP software
Back Office Management System
Multimedia management information system support mobile control,login in mobile phone
or ipad or computer,send advertising material to the digital signage at anywhere or any time
10-points Touch(multi-character Touch)
10-points touch,≤5mm Explosion Protection Toughened Glass for The Writing Surface, Scratch-resistant,
anticollison.It can be operated by hands or any opaque item.Both convenient and environmental.
Operating Gesturer(screen touched freely)
Touched with single hand or two hands.Zoom in/Zoom out,minify/magnify,rotate..
It is easy to operate and all is under your control
The Package and The Delivery
With durable carton or flycase,as your requirement
By sea/by air/by express optional
By sea:it takes about one month to your country
By air/by express:it takes about one week to your country
Optional Function:
1. Different software installation, software updating function
2. Multi-language OSD: English, Chinese etc
3. IR or capacitive Touch-screen, HDMI,VGA and AV port function.
4. Remote control by network with provided software.
5. Split screen display--- video area, text area,scrolling text, logo area, etc. displaying
different media content in different area.
6. Operation system: Linx,Windons,Android.
